Lighting the Way to Victory!

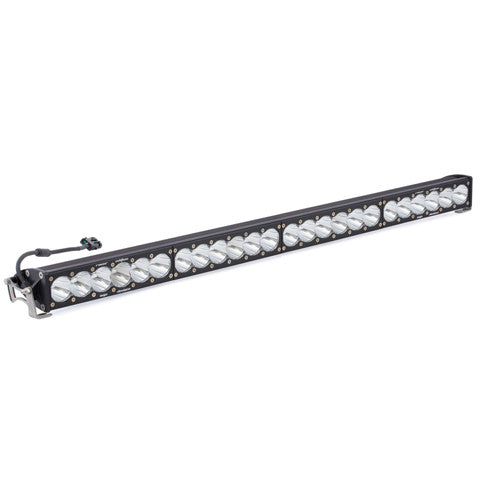

Baja Designs OnX6 Straight Racer Edition LED Light Bar
The biggest in our Racer Edition line, the 50-inch OnX6 Racer Edition Light Bar also packs the hardest punch. If you have enough room to mount it, the 50-inch OnX6 Racer Edition Light Bar delivers all the power you need for high-speed nighttime driving, either on-road or off.
The 50-inch OnX6 Racer Edition Light Bar was engineered for speeds of 110 plus MPH, and it comes with our industry-first 30-day Satisfaction Guarantee and Limited Lifetime Warranty. The OnX6 Racer Edition LED Light Bar is BRIGHTER, BOLDER, BETTER.
| Satisfaction Guarantee | 30-Day Money Back Guarantee |
| Limited Lifetime Warranty | Complete Purchase Protection |
| uService | Replaceable Lenses And Optics |
| ClearView | All The Light, Right Where You Need It |
| MoistureBlock | Waterproof, Rain Proof, Submersible |
| CopperDrive | Only LED Driven At 100 Percent |
| 5000K Daylight | Less Driver Fatigue, Natural Color |
VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.
Disclaimer and Warning
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and buyer will comply with all vehicle and road safety guidelines.
Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65

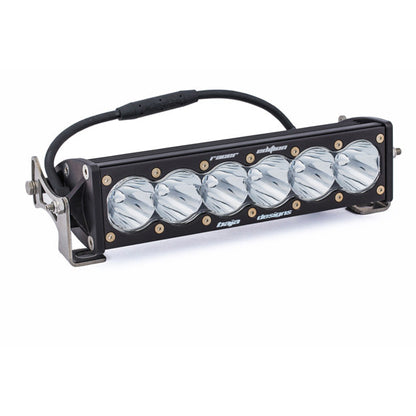

OnX6+ 10 Inch Racer Edition LED Light Bar
| Amperage Rating (A) | 5.25 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Billet Machined Aluminum |
| Description | Straight; Racer Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch Racer Edition LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 63 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.25 |
OnX6+ 20 Inch Racer Edition LED Light Bar
| Amperage Rating (A) | 10.5 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Billet Machined Aluminum |
| Description | Straight; Racer Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 12 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 20 Inch Racer Edition LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 126 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 20 |
| Weight (lbs.) | 7.85 |
OnX6+ 30 Inch Racer Edition LED Light Bar
| Amperage Rating (A) | 15.75 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Billet Machined Aluminum |
| Description | Straight; Racer Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 18 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 30 Inch Racer Edition LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 189 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 30 |
| Weight (lbs.) | 11.45 |
OnX6+ 40 Inch Racer Edition LED Light Bar
| Amperage Rating (A) | 21 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Billet Machined Aluminum |
| Description | Straight; Racer Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 40 Inch Racer Edition LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 252 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 40 |
| Weight (lbs.) | 15.05 |
OnX6+ 50 Inch Racer Edition LED Light Bar
| Amperage Rating (A) | 26.25 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Billet Machined Aluminum |
| Description | Straight; Racer Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 30 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 50 Inch Racer Edition LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 315 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 50 |
| Weight (lbs.) | 18.65 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
