Illuminate the Road Ahead with Hybrid Brilliance!
Baja Design OnX6 Universal Hybrid LED/Laser Light Bar
The new Baja Designs Laser Light series is at the pinnacle of distance lighting. The Laser Light is capable of throwing light 350 percent farther than our current OnX6 plus Light Bar.
We have created a “Hybrid” light in order to give the user the ultimate lighting package. If you want to stay ahead of the competition with farthest reaching product on the market, look no further.
A 30-inch OnX6 Hybrid projects six laser chips and 12 LED chips through our High Speed Spot optic to deliver a far reaching, yet smooth blend of light – elevating forward-projection lighting into the next generation!
| Satisfaction Guarantee | 30-Day Money Back Guarantee |
| Limited Lifetime Warranty | Complete Purchase Protection |
| uService | Replaceable Lenses And Optics |
| ClearView | All The Light, Right Where You Need It |
| MoistureBlock | Waterproof, Rain Proof, Submersible |
| CopperDrive | Only LED Driven At 100 Percent |
| 5000K Daylight | Less Driver Fatigue, Natural Color |
Note:
40 inch and 50 inch Hybrid Laser light bars are extremely high output and as such must be built as dual power cord/ dual control. You will need two harnesses to power a 40 inch or 50 inch bar.
Please verify that your vehicle has the electrical output to run these products before purchase. OnX6 Hybrid bars sized 20 inch and above only function with one on/off switch- unlike the 10 inch Hybrid bars that feature separate switches for the LED chips and Laser chips, respectively.
VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.
Disclaimer and Warning
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Standards & Compliance
| Patent No. | 10,641,472 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |

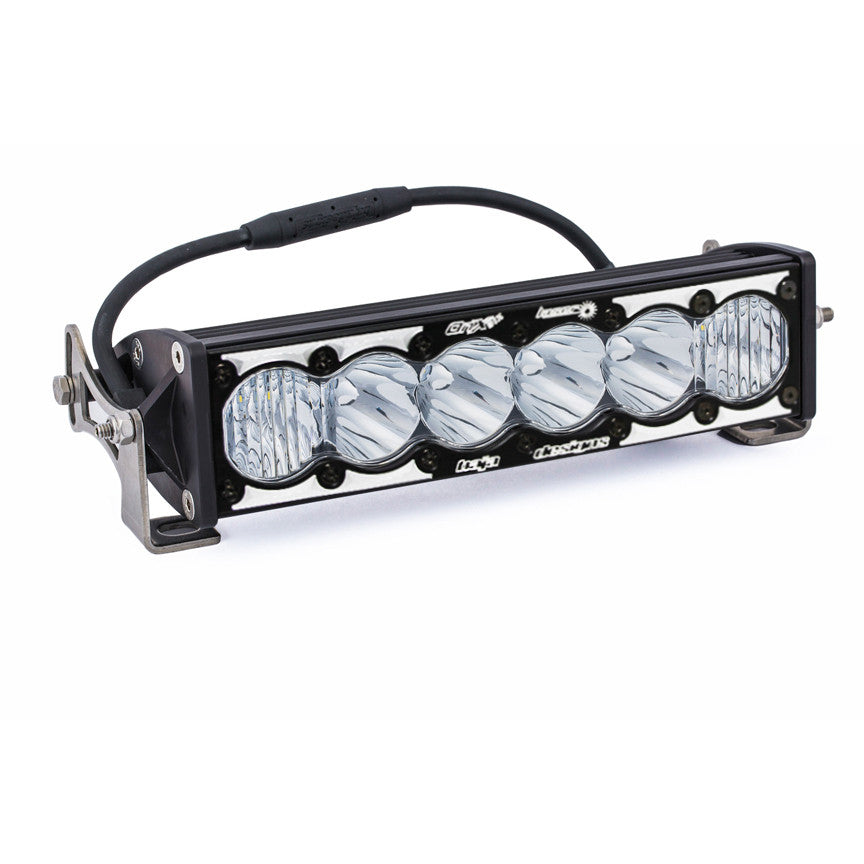

OnX6 10 Inch Hybrid LED/Laser Light Bar
| Amperage Rating (A) | 7.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Hybrid Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3750 |
| Description | Hybrid Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 6 |
| Lighting Technology | 2 Laser/4 LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6 10 Inch Hybrid LED/Laser Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 99.360 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.250 |
OnX6 20 Inch Hybrid LED/Laser Light Bar
| Amperage Rating (A) | 7.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Hybrid Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3750 |
| Description | Hybrid Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 12 |
| Lighting Technology | 4 Laser/8 LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6 20 Inch Hybrid LED/Laser Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 99.360 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 20 |
| Weight (lbs.) | 7.850 |
OnX6 30 Inch Hybrid LED/Laser Light Bar
| Amperage Rating (A) | 7.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Hybrid Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3750 |
| Description | Hybrid Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 12 |
| Lighting Technology | 4 Laser/8 LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6 20 Inch Hybrid LED/Laser Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 99.360 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 20 |
| Weight (lbs.) | 7.850 |
OnX6 40 Inch Hybrid LED/Laser Light Bar
| Amperage Rating (A) | 7.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Hybrid Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3750 |
| Description | Hybrid Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 24 |
| Lighting Technology | 8 Laser/16 LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6 40 Inch Hybrid LED/Laser Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 99.360 |
| Wiring Harness Included | No |
OnX6 50 Inch Hybrid LED/Laser Light Bar
| Amperage Rating (A) | 7.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Hybrid Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3750 |
| Description | Hybrid Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 24 |
| Lighting Technology | 8 Laser/16 LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6 40 Inch Hybrid LED/Laser Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 99.360 |
| Wiring Harness Included | No |
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 40 |
| Weight (lbs.) | 15.050 |
