Baja Designs Universal XL Linkable LED Light Bar
Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.
This kit includes 8 XL Sports, Links, and Rock Guards. This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle.

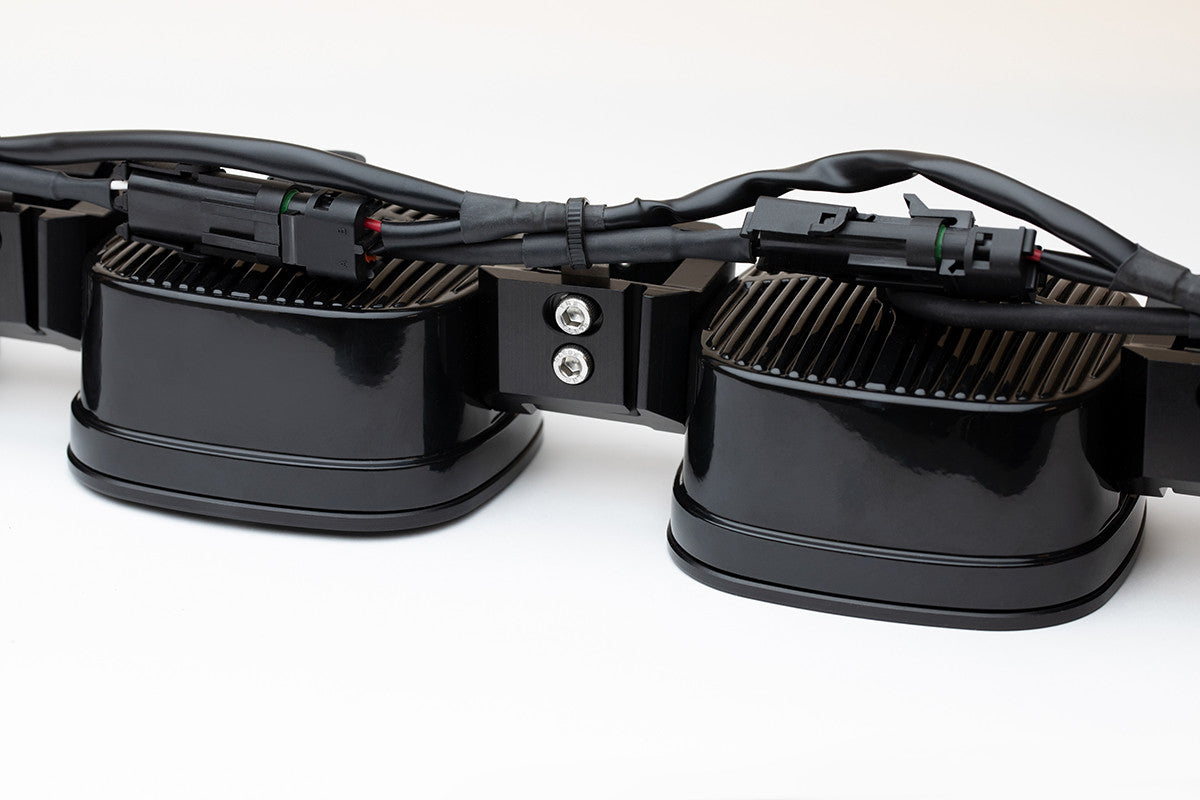

The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!
Satisfaction Guarantee | 30-Day Money Back Guarantee |
Limited Lifetime Warranty | Complete Purchase Protection |
uService | Replaceable Lenses And Optics |
ClearView | All The Light, Right Where You Need It |
MoistureBlock | Waterproof, Rain Proof, Submersible |
CopperDrive | Only LED Driven At 100 Percent |
5000K Daylight | Less Driver Fatigue, Natural Color |
VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.
Installation instructions
Disclaimer and Warning
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and buyer will comply with all vehicle and road safety guidelines.
Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
XL Linkable LED Light Bar 3 Lights
Amperage Rating (A) | 6 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Multi-Pattern |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 9,450 |
Description | 3XL Sport; Multi-Pattern; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 3 |
Lighting Modes | Beam |
Lighting Quantity | 12 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Links; Rock Guards |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Linkable LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 78 |
Wiring Harness Included | Yes |
Dimensions
Depth (in.) | 2.8 |
Height (in.) | 4.43 |
Length (in.) | 20.63 |
XL Linkable LED Light Bar 4 Lights
Amperage Rating (A) | 8 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Multi-Pattern |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 12,600 |
Description | 4XL Sport; Multi-Pattern; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 4 |
Lighting Modes | Beam |
Lighting Quantity | 16 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Links; Rock Guards |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Linkable LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 104 |
Wiring Harness Included | Yes |
Dimensions
Depth (in.) | 2.8 |
Height (in.) | 4.43 |
Length (in.) | 26.81 |
XL Linkable LED Light Bar
Amperage Rating (A) | 10 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Multi-Pattern |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 15,750 |
Description | 5XL Sport; Multi-Pattern; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 5 |
Lighting Modes | Beam |
Lighting Quantity | 20 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Links; Rock Guards |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Linkable LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 130 |
Wiring Harness Included | Yes |
Dimensions
Depth (in.) | 2.8 |
Height (in.) | 4.43 |
Length (in.) | 32.99 |
XL Linkable LED Light Bar
Amperage Rating (A) | 12 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Multi-Pattern |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 18,900 |
Description | 6XL Sport; Multi-Pattern; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 6 |
Lighting Modes | Beam |
Lighting Quantity | 24 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Linkable LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 156 |
Wiring Harness Included | Yes |
XL Linkable LED Light Bar
Amperage Rating (A) | 12 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Multi-Pattern |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 18,900 |
Description | 6XL Sport; Multi-Pattern; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 6 |
Lighting Modes | Beam |
Lighting Quantity | 24 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Linkable LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 156 |
Wiring Harness Included | Yes |
Dimensions
Depth (in.) | 2.8 |
Height (in.) | 4.43 |
Length (in.) | 39.16 |
XL Linkable LED Light Bar 8 Lights specifications
Amperage Rating (A) | 16 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Multi-Pattern |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 25,200 |
Description | 8XL Sport; Multi-Pattern; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 8 |
Lighting Modes | Beam |
Lighting Quantity | 32 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Linkable LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 208 |
Wiring Harness Included | Yes |
Dimensions
Depth (in.) | 2.8 |
Height (in.) | 4.43 |
Length (in.) | 51.52 |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
