Lighting Excellence Meets Universality!

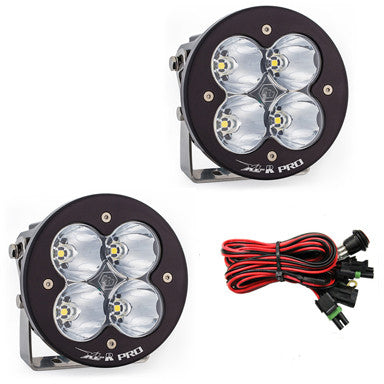

Baja Designs XL-R Pro LED Auxiliary Light Pod Pair - Universal

Two is always better than one, right? We think so, which is why we’re offering a pair of XL-R Pro LED auxiliary lights with wiring harness at a price like this.

With a 4,900-lumen count and power draw of just 40 watts, the XL Pro is the only single-housing LED auxiliary light on the market that has the distance of an 8-inch HID with the smooth spread of an LED.

The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 50-percent dimming feature.

Choose from a variety of patterns to suit your needs:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Perfect for enthusiasts that need a vast amount of light and are looking for something other than a light bar. An industry-first, 30-day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Satisfaction Guarantee 30-Day Money Back Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, Right Where You Need It
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 Percent
5000K Daylight Less Driver Fatigue, Natural Color

VEHICLE LIGHTING ZONES

The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.

Learn more about each zone's placement, power, and pattern.

Disclaimer and Warning

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and buyer will comply with all vehicle and road safety guidelines.

Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

    Baja Designs California Proposition 65

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    SKU: 537801

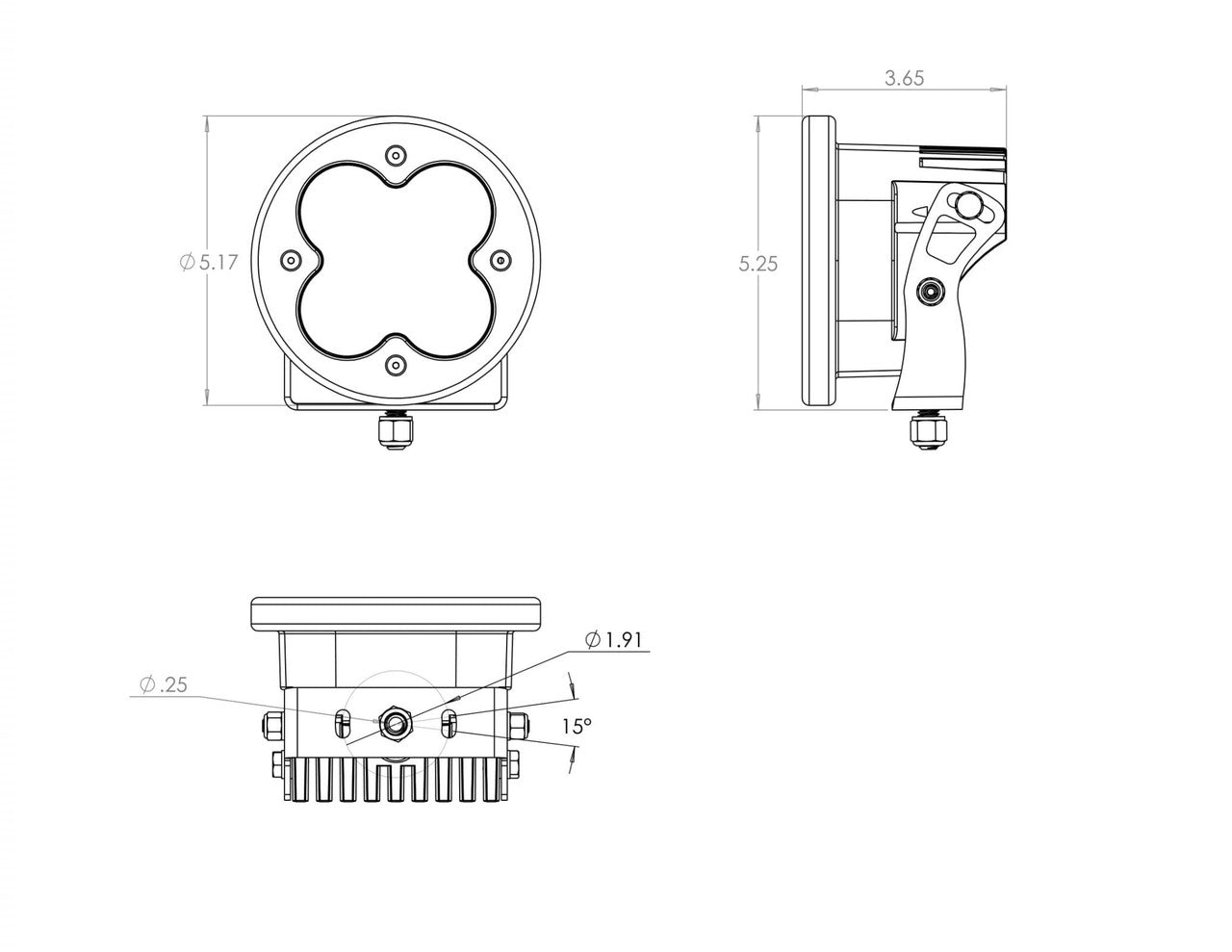

    Dimensions

    Depth (in.) 3.65
    Height (in.) 5.24
    Length (in.) 5.24
    Weight (lbs.) 2.45

    Specifications

    Amperage Rating (A) 2.9
    Average Rated Life (hr.) 49,930
    Beam Pattern Spot
    Bezel Material Billet Machined Aluminum
    Brightness (Lumens) 4,900
    Description Round; Spot; Clear; Pair
    Housing Color Black
    Housing Material Hard Anodized and Powder Coated Cast Aluminum
    Lens Color Clear
    Lens Material Hardcoated Polycarbonate
    Light Quantity 2
    Lighting Modes High Beam/Dimming Feature (20%)
    Lighting Quantity 4
    Lighting Technology Cree XP-L LED
    Lighting Type Forward Projecting
    Mounting Hardware Included Yes
    Mounting Hardware Material Stainless Steel
    Overvoltage Protection Built-In
    Product Type XL-R Pro LED Light Pod Pair w/ Wiring Harness
    Universal or Specific Universal
    Wattage (W) 40
    Wiring Harness Included Yes

    Standards & Compliance

    Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
    Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
    Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

    SKU: 537803

    Dimensions

    Depth (in.) 3.65
    Height (in.) 5.24
    Length (in.) 5.24
    Weight (lbs.) 2.45

    Specifications

    Amperage Rating (A) 2.9
    Average Rated Life (hr.) 49,930
    Beam Pattern Driving/Combo
    Bezel Material Billet Machined Aluminum
    Brightness (Lumens) 4,900
    Description Round; Driving/Combo; Clear; Pair
    Housing Color Black
    Housing Material Hard Anodized and Powder Coated Cast Aluminum
    Lens Color Clear
    Lens Material Hardcoated Polycarbonate
    Light Quantity 2
    Lighting Modes High Beam/Dimming Feature (20%)
    Lighting Quantity 4
    Lighting Technology Cree XP-L LED
    Lighting Type Forward Projecting
    Mounting Hardware Included Yes
    Mounting Hardware Material Stainless Steel
    Overvoltage Protection Built-In
    Product Type XL-R Pro LED Light Pod Pair w/ Wiring Harness
    Universal or Specific Universal
    Wattage (W) 40
    Wiring Harness Included Yes

    Standards & Compliance

    Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
    Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
    Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

    SKU: 537805

    Dimensions

    Depth (in.) 3.65
    Height (in.) 5.24
    Length (in.) 5.24
    Weight (lbs.) 2.45

    Specifications

    Amperage Rating (A) 2.9
    Average Rated Life (hr.) 49,930
    Beam Pattern Wide Cornering
    Bezel Material Billet Machined Aluminum
    Brightness (Lumens) 4,900
    Description Round; Wide Cornering; Clear; Pair
    Housing Color Black
    Housing Material Hard Anodized and Powder Coated Cast Aluminum
    Lens Color Clear
    Lens Material Hardcoated Polycarbonate
    Light Quantity 2
    Lighting Modes High Beam/Dimming Feature (20%)
    Lighting Quantity 4
    Lighting Technology Cree XP-L LED
    Lighting Type Forward Projecting
    Mounting Hardware Included Yes
    Mounting Hardware Material Stainless Steel
    Overvoltage Protection Built-In
    Product Type XL-R Pro LED Light Pod Pair w/ Wiring Harness
    Universal or Specific Universal
    Wattage (W) 40
    Wiring Harness Included Yes

    Standards & Compliance

    Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
    Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
    Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

    SKU: 537813

    Dimensions

    Depth (in.) 3.65
    Height (in.) 5.24
    Length (in.) 5.24
    Weight (lbs.) 2.45

    Specifications

    Amperage Rating (A) 2.9
    Average Rated Life (hr.) 49,930
    Beam Pattern Driving/Combo
    Bezel Material Billet Machined Aluminum
    Brightness (Lumens) 4,900
    Description Round; Driving/Combo; Amber; Pair
    Housing Color Black
    Housing Material Hard Anodized and Powder Coated Cast Aluminum
    Lens Color Amber
    Lens Material Hardcoated Polycarbonate
    Light Quantity 2
    Lighting Modes High Beam/Dimming Feature (20%)
    Lighting Quantity 4
    Lighting Technology Cree XP-L LED
    Lighting Type Forward Projecting
    Mounting Hardware Included Yes
    Mounting Hardware Material Stainless Steel
    Overvoltage Protection Built-In
    Product Type XL-R Pro LED Light Pod Pair w/ Wiring Harness
    Universal or Specific Universal
    Wattage (W) 40
    Wiring Harness Included Yes

    Standards & Compliance

    Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
    Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
    Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

    SKU: 537815

    Dimensions

    Depth (in.) 3.65
    Height (in.) 5.24
    Length (in.) 5.24
    Weight (lbs.) 2.45

    Specifications

    Amperage Rating (A) 2.9
    Average Rated Life (hr.) 49,930
    Beam Pattern Wide Cornering
    Bezel Material Billet Machined Aluminum
    Brightness (Lumens) 4,900
    Description Round; Wide Cornering; Amber; Pair
    Housing Color Black
    Housing Material Hard Anodized and Powder Coated Cast Aluminum
    Lens Color Amber
    Lens Material Hardcoated Polycarbonate
    Light Quantity 2
    Lighting Modes High Beam/Dimming Feature (20%)
    Lighting Quantity 4
    Lighting Technology Cree XP-L LED
    Lighting Type Forward Projecting
    Mounting Hardware Included Yes
    Mounting Hardware Material Stainless Steel
    Overvoltage Protection Built-In
    Product Type XL-R Pro LED Light Pod Pair w/ Wiring Harness
    Universal or Specific Universal
    Wattage (W) 40
    Wiring Harness Included Yes

    Standards & Compliance

    Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
    Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
    Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
