Ignite the path to adventure with double the power and style!

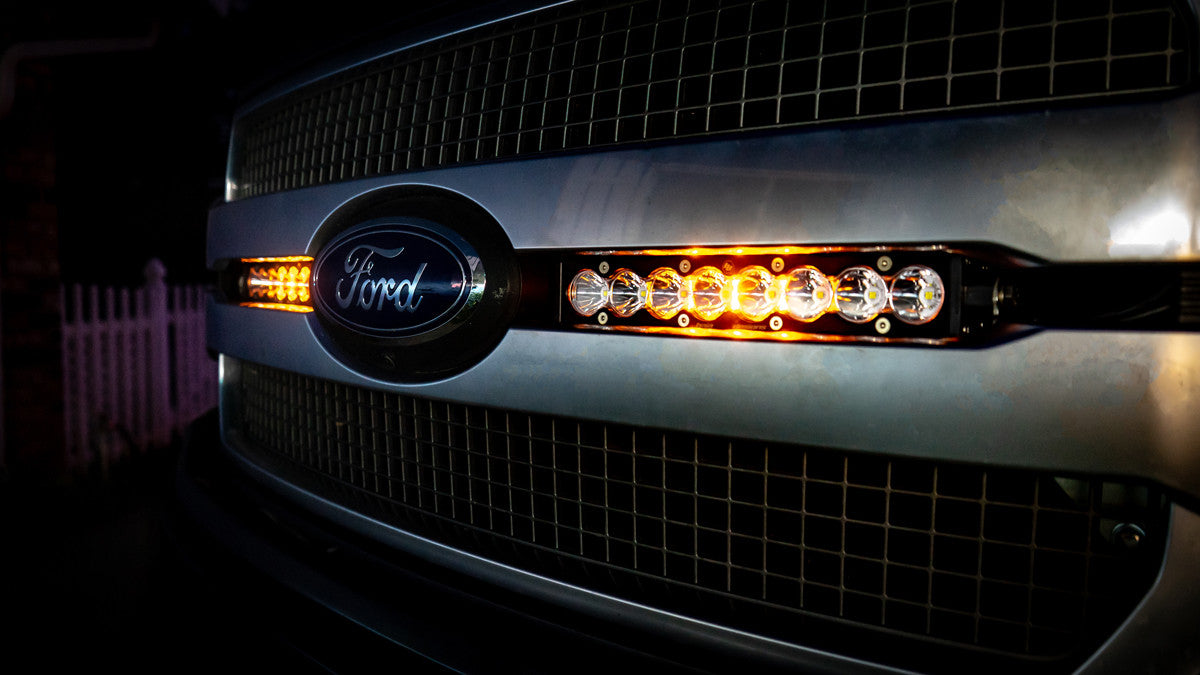

Baja Designs Ford S8 Dual 10 Inch Grille Light Bar Kit - Ford 2018-20 F-150
This is a turn key solution for anyone that is interested in serious lighting performance with styling in mind. This S8 grille kit will provide you with over 12,000 lumens and an amber backlit feature without cutting or drilling!
This kit will include a wiring harness, 3-pin splitter, and amber backlit fuse tap kit. This combination will enable users to tap into their vehicle’s ignition which will automatically trigger the amber backlit LEDs.
This attractive safety feature is pleasing to the eye, while drawing minimal amps and keeping you visible while out on the trail. The model variants that this kit is applicable to can be found below.
| Satisfaction Guarantee | 30-Day Money Back Guarantee |
| Limited Lifetime Warranty | Complete Purchase Protection |
| uService | Replaceable Lenses And Optics |
| ClearView | All The Light, Right Where You Need It |
| MoistureBlock | Waterproof, Rain Proof, Submersible |
| CopperDrive | Only LED Driven At 100 Percent |
| 5000K Daylight | Less Driver Fatigue, Natural Color |
VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.
Installation instructions
Disclaimer and Warning
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and buyer will comply with all vehicle and road safety guidelines.
Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
SKU: 701003
Dimensions
| Depth (in.) | 3 |
| Height (in.) | 1.600 |
| Length (in.) | 10 |
| Weight (lbs.) | 2.400 |
Specifications
| Amperage Rating (A) | 4.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 6324 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | Beam/Amber Backlit Feature |
| Lighting Quantity | 8 |
| Lighting Type | Cree LED |
| Lighting Technology | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S8 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 57.960 |
| Wiring Harness Included | No |
Standards & Compliance
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
